Four CLI scripts in the scripts/ directory automate the full workflow — STAC queries, temporal compositing, provenance tracking, and population overlay. This chapter walks through the pipeline, shows the actual command-line calls, and showcases the outputs. The methodology behind each stage is covered in depth in the appendices: Appendix A, Appendix B, and Appendix C.
import geopandas as gpd
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
import numpy as np
import pandas as pd
import ocha_stratus as stratus
from ocha_stratus import list_container_blobs, load_blob_data
from ds_flood_gfm.geo_utils import generate_rdylgn_colors
%matplotlib inline
plt.rcParams['figure.dpi'] = 100The pipeline has four scripts, run in order:
| Script | Purpose | Runtime |
|---|---|---|
01_download_codab_to_blob.py |
Download admin boundaries to blob (one-time setup) | ~30s |
02_generate_affected_population_choropleths.py |
Query STAC, composite, population overlay, choropleths | ~4-50 min (country-dependent) |
03_generate_flooded_area_choropleths.py |
Generate flooded area (km2) choropleths from cache | ~30s |
04_generate_flood_polygons.py |
Raster-to-vector conversion, export to blob | ~5-20 min |
Scripts 02 and 03 produce PNG choropleths. Script 04 produces vector polygons and provenance rasters as COGs, uploaded to Azure Blob Storage.
One-time setup to cache COD-AB (Common Operational Datasets - Administrative Boundaries) in blob storage for fast access.
uv run python scripts/01_download_codab_to_blob.pyThis downloads admin levels 1-3 from FieldMaps.io for configured countries (Jamaica, Haiti, Cuba) and uploads them as parquet files to blob. The blob structure:
ds-flood-gfm/raw/codab/{iso3_lower}/{iso3_lower}_adm{level}.parquetThe main analysis script. It queries STAC, builds composites, overlays with population data, and generates choropleth visualizations.
uv run python scripts/02_generate_affected_population_choropleths.py \
--end-date 2025-10-29 \
--n-latest 4 \
--iso3 JAM \
--flood-mode latest| Argument | Default | Description |
|---|---|---|
--end-date |
required | Latest date to search back from (YYYY-MM-DD) |
--n-latest |
3 | Number of most recent observation dates to use |
--iso3 |
JAM | Country code (JAM, HTI, CUB) |
--flood-mode |
latest | latest (current state) or cumulative (total footprint) |
--cache-dir |
data/cache |
Cache directory |
--no-cache |
false | Force recompute, skip cache |
Running with --flood-mode latest:
uv run python scripts/02_generate_affected_population_choropleths.py \
--end-date 2025-10-29 \
--n-latest 4 \
--iso3 JAM \
--flood-mode latestThen again with --flood-mode cumulative:
uv run python scripts/02_generate_affected_population_choropleths.py \
--end-date 2025-10-29 \
--n-latest 4 \
--iso3 JAM \
--flood-mode cumulativeRuntime: Jamaica ~4-5 min first run, ~46 sec cached. Haiti ~15-20 min. Cuba ~45-60 min.
Each run produces:

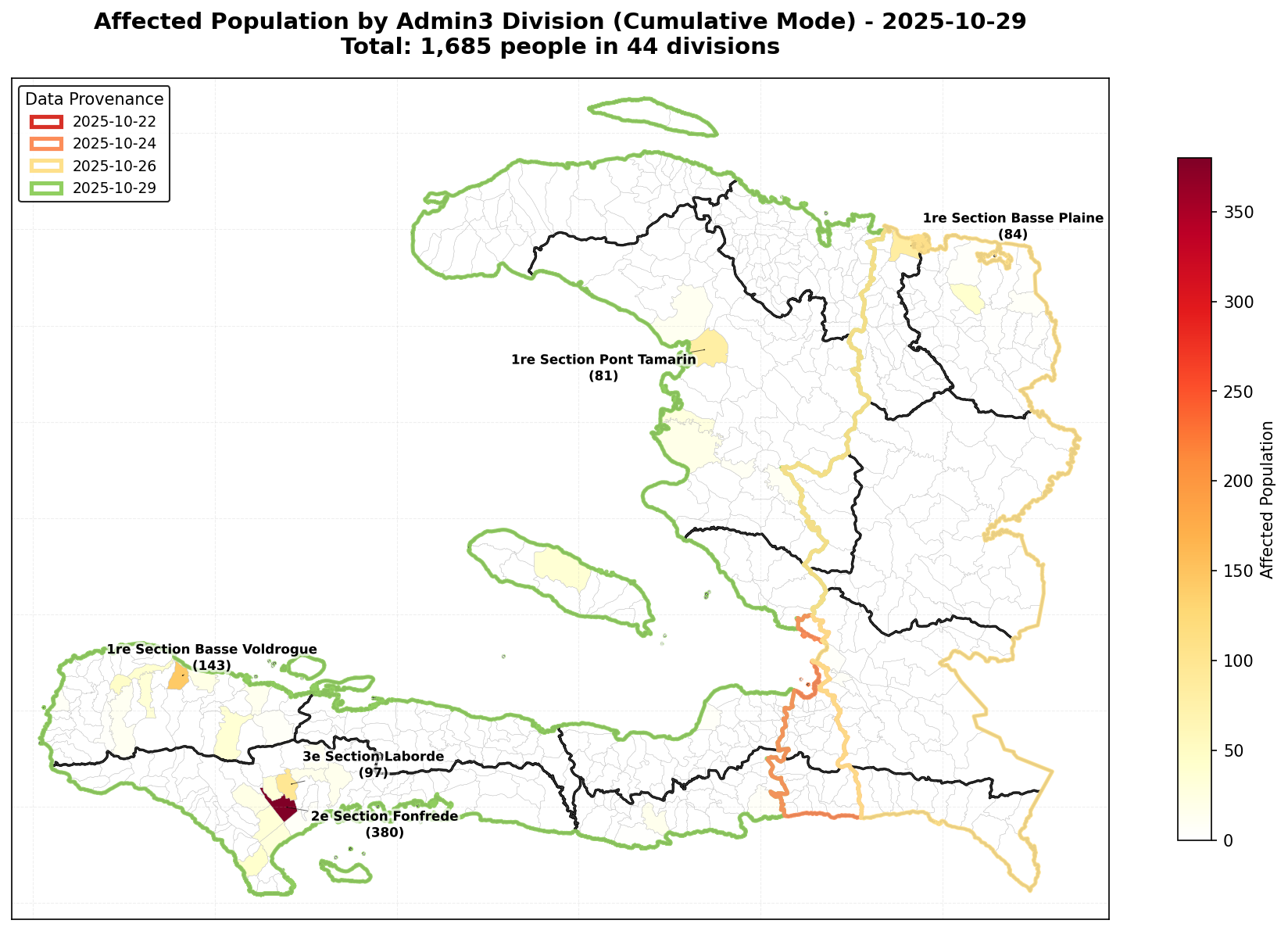

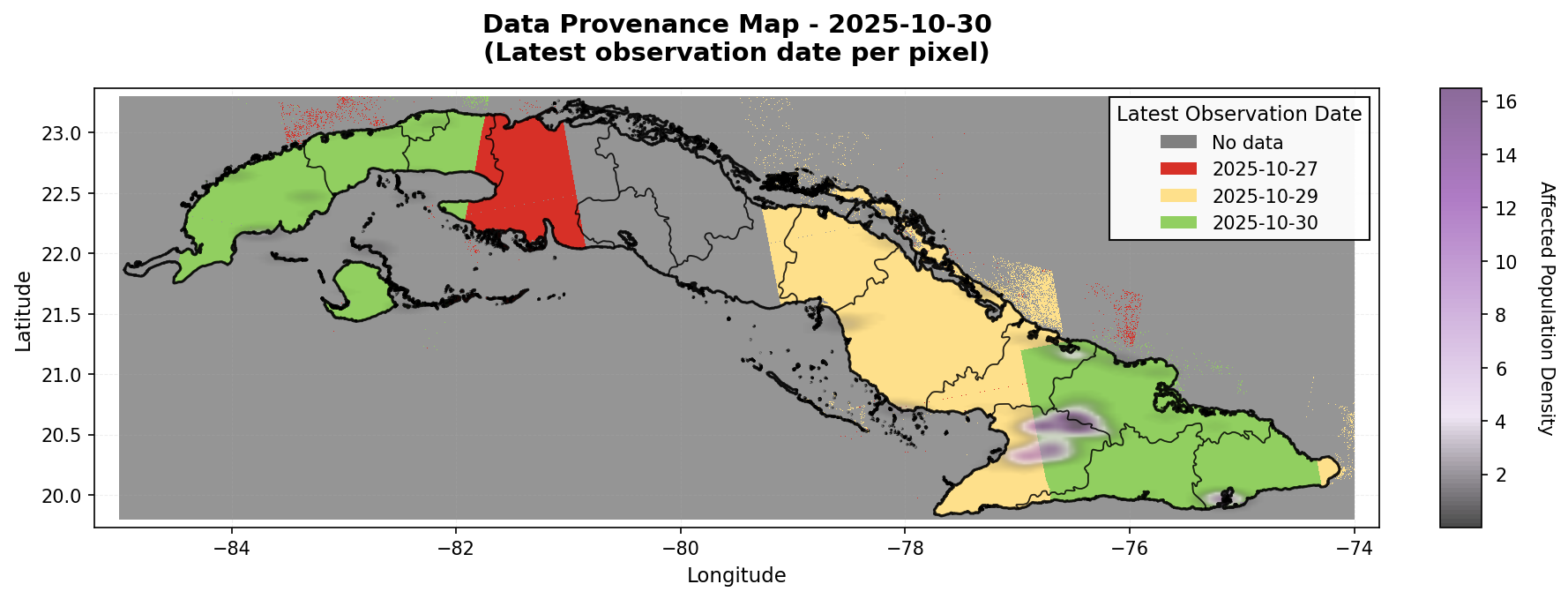

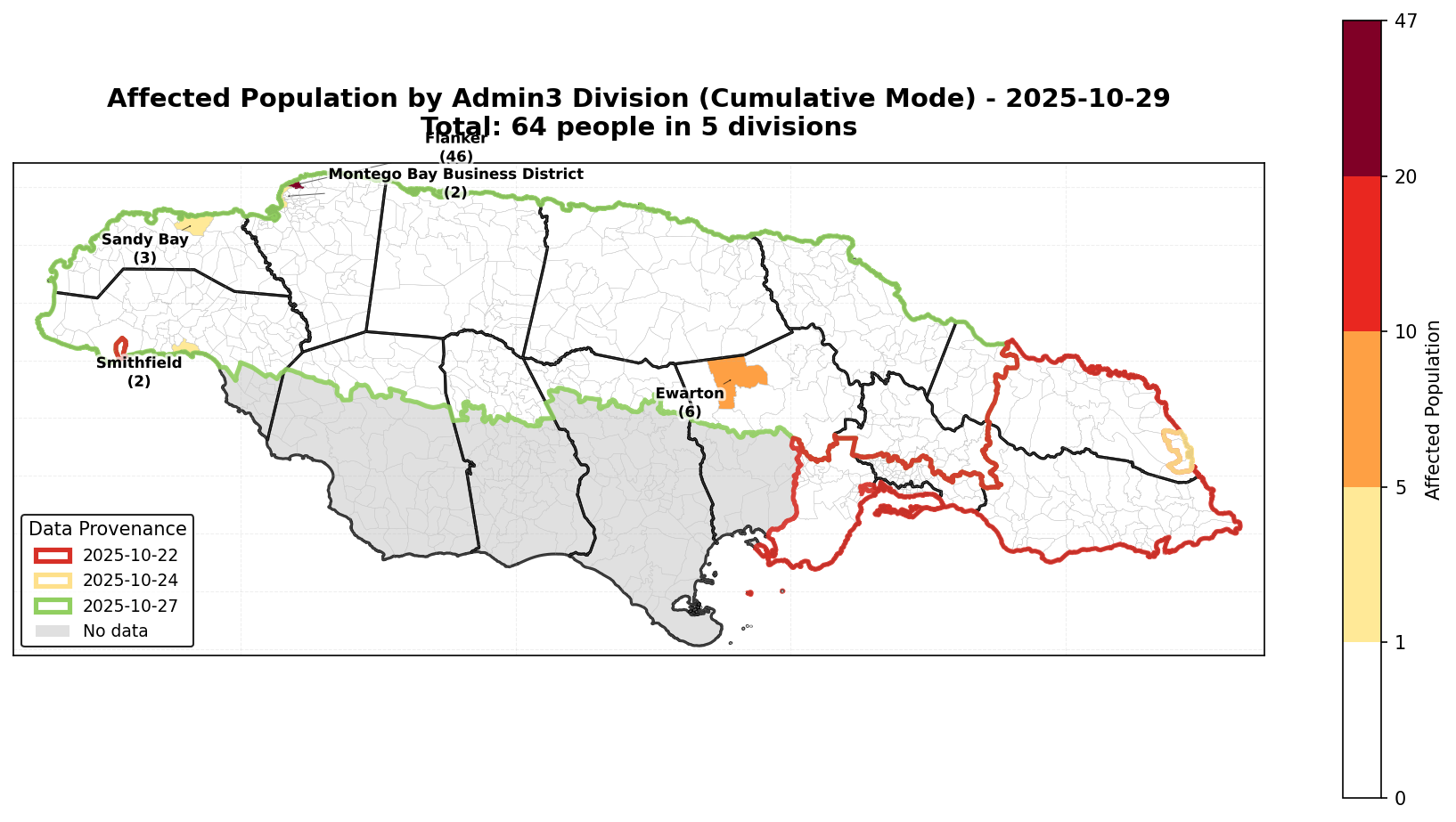

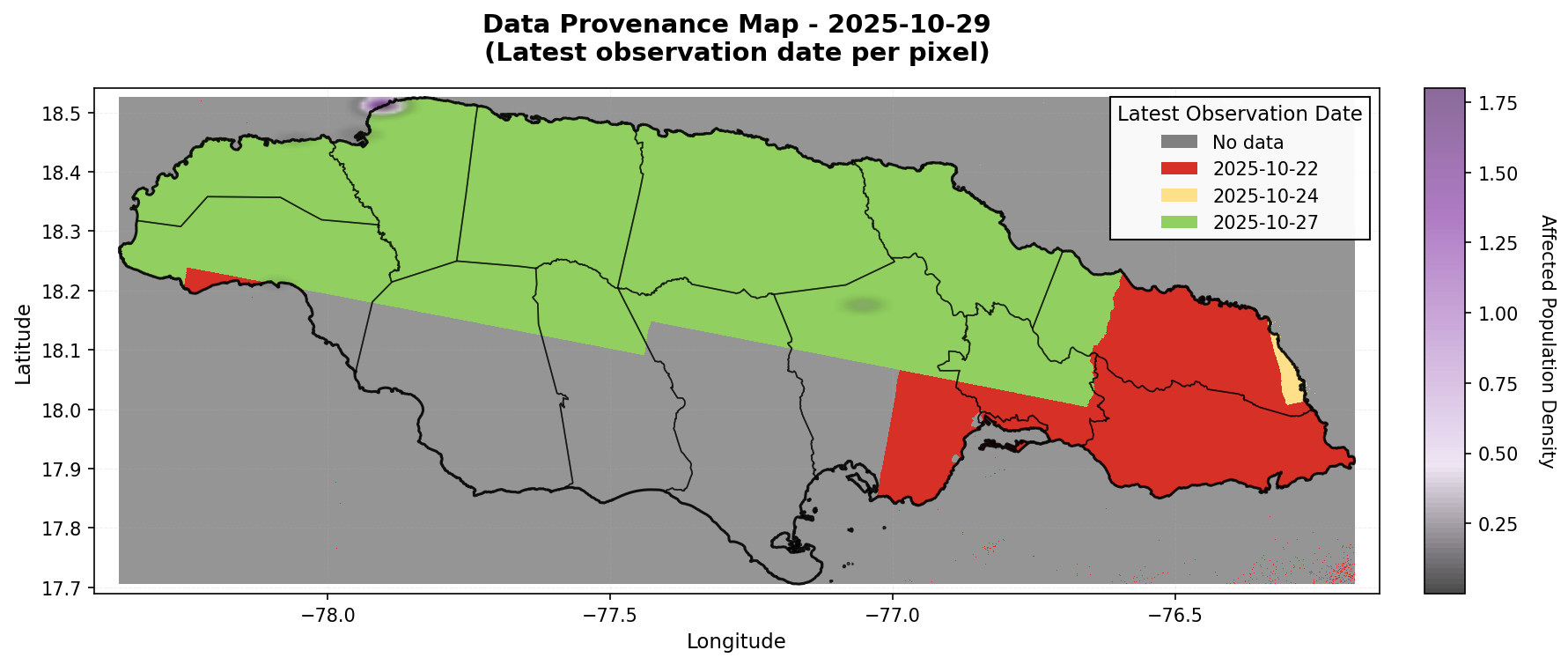

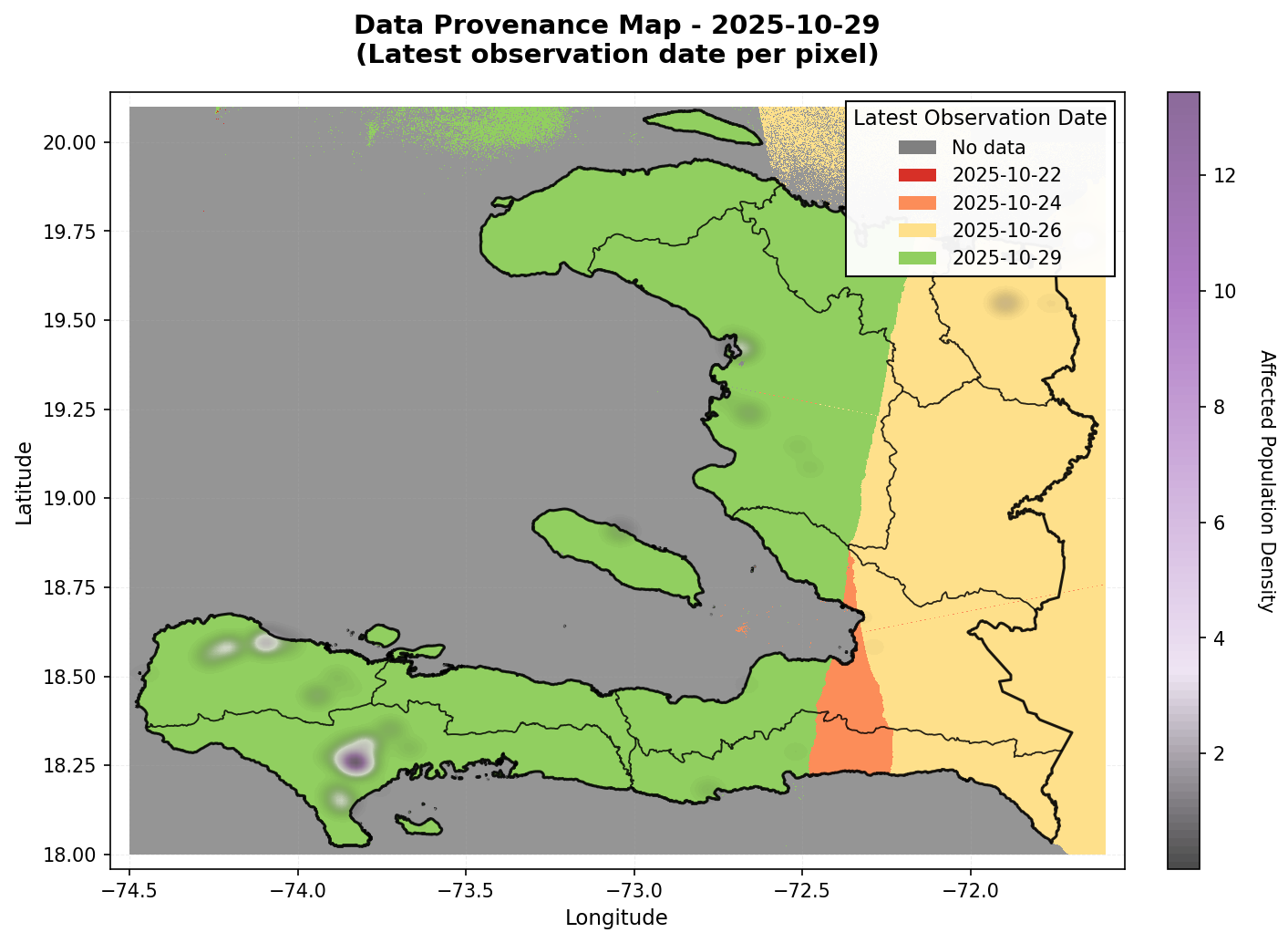

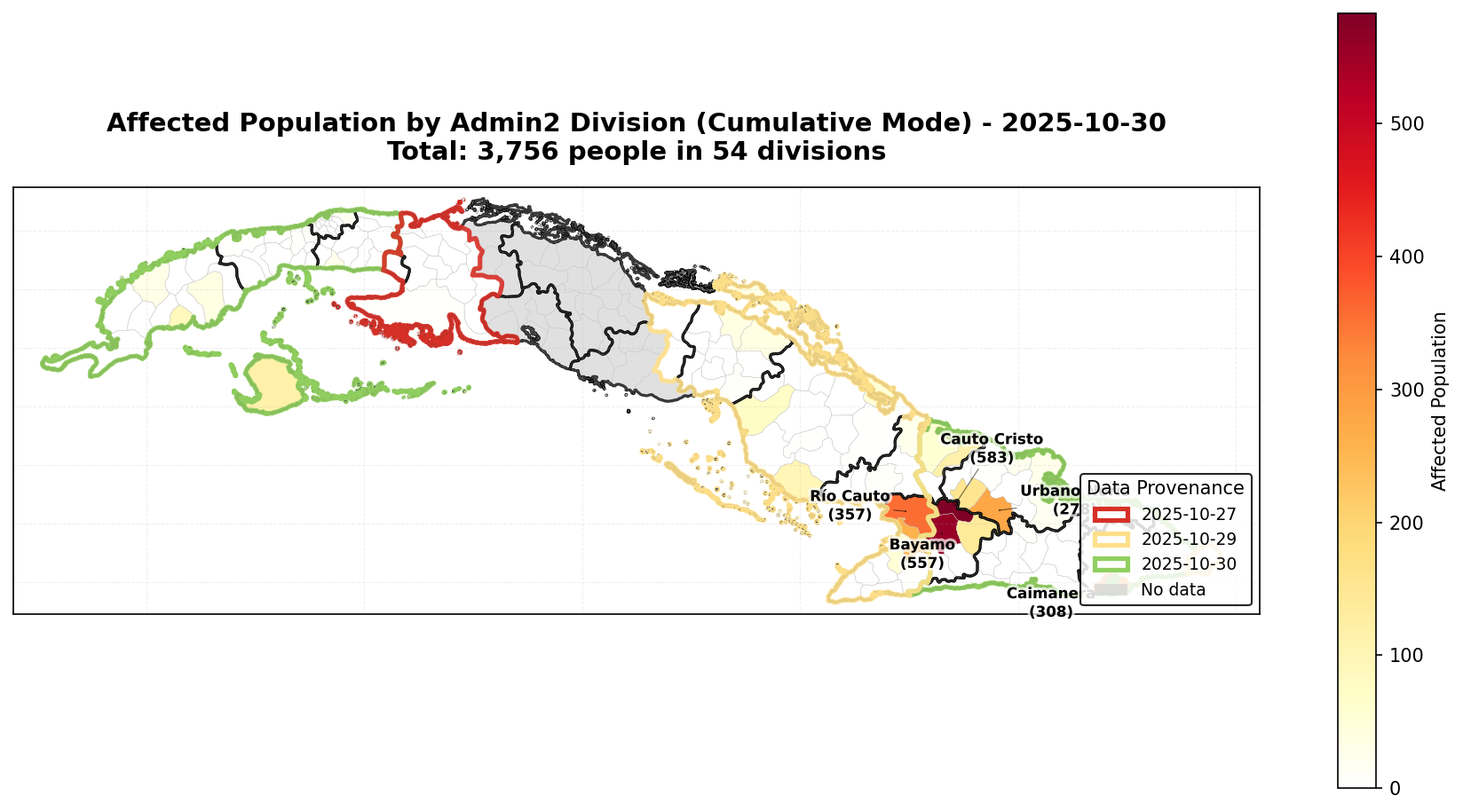

{ISO3}_population_provenance_{YYYYMMDD}.png — density heatmap with provenance overlay{ISO3}_population_{mode}_adm3_{YYYYMMDD}.png — affected population choroplethThe cache key is generated from the actual satellite observation dates returned by STAC, not the query parameters. This means:
Same satellite data — if you query up to Oct 27 and find dates [Oct 22, 24, 27], then query up to Oct 28 and find the same three dates, the cache key is identical. The second run uses cache (~46 sec vs ~4 min).
New observation arrives — if you query up to Oct 29 and find dates [Oct 24, 27, 29], the cache key changes and the composite is rebuilt with the new data.
These maps are the direct output of Script 02. Each country gets a provenance density heatmap and an affected population choropleth.
Reads cached flood points from Script 02 and generates flooded area maps.
uv run python scripts/03_generate_flooded_area_choropleths.py \
--end-date 2025-10-29 \
--n-latest 4 \
--iso3 JAMPrerequisite: Must have run Script 02 in both latest and cumulative modes first.
Outputs:

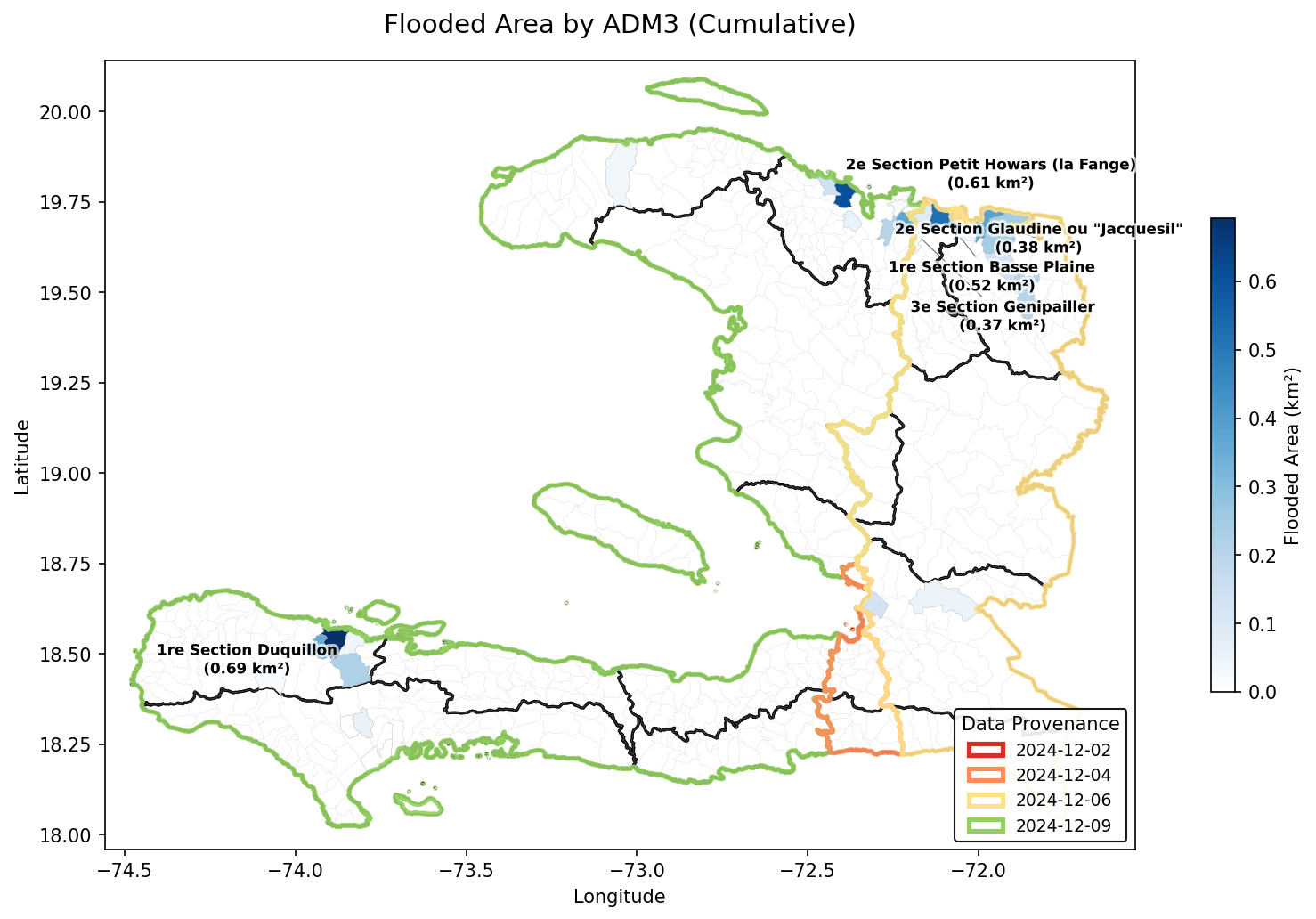

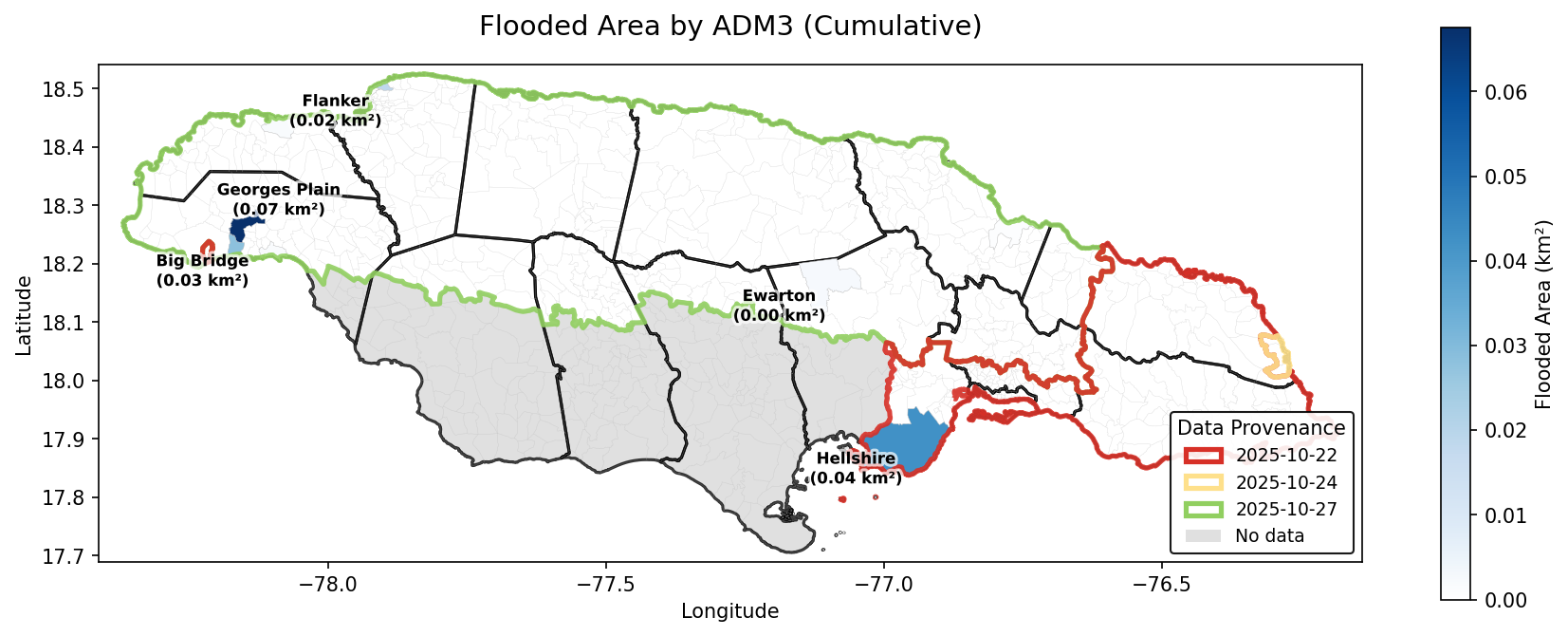

{ISO3}_choropleth_flooded_area_latest_{YYYYMMDD}.png — km2 per admin division{ISO3}_choropleth_flooded_area_cumulative_{YYYYMMDD}.png
Converts raster composites to vector polygons with provenance metadata and uploads to blob.
# Standard country run
uv run python scripts/04_generate_flood_polygons.py \
--target-date 2025-10-29 \
--n-images 4 \
--iso3 JAM \
--flood-mode cumulative
# Custom geometry from blob (e.g., Gaza Strip)
uv run python scripts/04_generate_flood_polygons.py \
--target-date 2025-11-14 \
--n-images 4 \
--aoi-geom-blob ds-flood-gfm/raw/geom/gaza_strip_adm1.parquet \
--flood-mode cumulative
# Large country with spatial tiling
uv run python scripts/04_generate_flood_polygons.py \
--target-date 2025-11-05 \
--n-images 4 \
--iso3 CUB \
--flood-mode cumulative \
--use-tiling \
--tile-size 2.0| Argument | Default | Description |
|---|---|---|
--target-date |
required | Reference date (YYYY-MM-DD) |
--n-images |
4 | Number of dates for composite |
--n-search |
-15 | Search window in days. Negative = backward, positive = forward |
--iso3 |
— | Country code (mutually exclusive with --aoi-geom-blob) |
--aoi-geom-blob |
— | Blob path to custom geoparquet AOI |
--flood-mode |
latest | latest or cumulative |
--use-tiling |
false | Enable spatial tiling for large countries |
--tile-size |
2.0 | Tile size in degrees |
The pipeline uploads outputs to Azure Blob Storage. Here’s an inventory of what’s available:
# List all processed outputs on blob
blobs = list_container_blobs(
name_starts_with='ds-flood-gfm/processed/',
stage='dev',
container_name='projects'
)
# Categorize
polygons = [b for b in blobs if '/polygon/' in b and b.endswith('.shp.zip')]
provenance = [b for b in blobs if '/provenance_raster/' in b and b.endswith('.tif')]
pop_csv = [b for b in blobs if '/exposed_population/' in b and b.endswith('.csv')]
cache = [b for b in blobs if '/cache/' in b]
print(f"Flood polygon shapefiles: {len(polygons)}")
print(f"Provenance rasters (COG): {len(provenance)}")
print(f"Exposed population CSVs: {len(pop_csv)}")print("Available flood polygon exports:\n")
for p in sorted(polygons):
name = p.split('/polygon/')[-1]
print(f" {name}")# Extract unique AOIs from polygon names
aois = set()
for p in polygons:
name = p.split('/polygon/')[-1]
# Extract prefix before first date
parts = name.split('_')
# ISO3 codes are 3 chars, custom geoms are longer
aoi = parts[0]
if len(parts) > 1 and not parts[1][0].isdigit():
aoi = f"{parts[0]}_{parts[1]}"
aois.add(aoi)
print("Areas of interest with polygon outputs:")
for aoi in sorted(aois):
n = len([p for p in polygons if f'/polygon/{aoi}_' in p or f'/polygon/{aoi}' in p.split('/')[-1]])
print(f" {aoi}: {n} exports")The flood polygons can be loaded from blob and visualized with provenance coloring.
import tempfile, zipfile, os
# Load a Jamaica polygon export
jam_polygons = [p for p in polygons if p.startswith('ds-flood-gfm/processed/polygon/JAM_')]
if jam_polygons:
# Use the most recent cumulative export
cumulative = [p for p in jam_polygons if 'cumulative' in p]
if cumulative:
blob_path = sorted(cumulative)[-1]
print(f"Loading: {blob_path}")
# Download the zip and find the .shp file inside
zip_data = stratus.load_blob_data(blob_path, container_name='projects', stage='dev')
with tempfile.TemporaryDirectory() as tmpdir:
zip_path = os.path.join(tmpdir, "flood.shp.zip")
with open(zip_path, 'wb') as f:
f.write(zip_data)
with zipfile.ZipFile(zip_path) as zf:
zf.extractall(tmpdir)
shp_files = [f for f in zf.namelist() if f.endswith('.shp')]
if shp_files:
gdf_polygons = gpd.read_file(os.path.join(tmpdir, shp_files[0]))
print(f"Loaded {len(gdf_polygons)} polygons")
print(f"Columns: {list(gdf_polygons.columns)}")from fsspec.implementations.http import HTTPFileSystem
if 'gdf_polygons' in dir() and gdf_polygons is not None and len(gdf_polygons) > 0:
# Load country outline for context
GLOBAL_ADM1 = (
"https://data.fieldmaps.io/edge-matched/humanitarian/intl/adm1_polygons.parquet"
)
filesystem = HTTPFileSystem()
gdf_jam = gpd.read_parquet(GLOBAL_ADM1, filesystem=filesystem,
filters=[("iso_3", "=", "JAM")]).dissolve()
fig, ax = plt.subplots(1, 1, figsize=(14, 8))
# Country outline
gdf_jam.plot(ax=ax, color='#f5f5f5', edgecolor='black', linewidth=1.5)
# Flood polygons
gdf_flood = gdf_polygons[gdf_polygons.geometry.notnull()]
if 'prov_date' in gdf_flood.columns:
# Color by provenance date
unique_dates = sorted(gdf_flood['prov_date'].dropna().unique())
colors = generate_rdylgn_colors(len(unique_dates))
date_to_color = dict(zip(unique_dates, colors))
for date, color in date_to_color.items():
subset = gdf_flood[gdf_flood['prov_date'] == date]
subset.plot(ax=ax, color=color, edgecolor=color, linewidth=0.5, alpha=0.7)
legend_patches = [mpatches.Patch(color=c, label=d) for d, c in date_to_color.items()]
ax.legend(handles=legend_patches, title='Provenance Date', loc='upper left',
fontsize=9, title_fontsize=10)
else:
gdf_flood.plot(ax=ax, color='darkblue', edgecolor='darkblue',
linewidth=0.5, alpha=0.7)
ax.set_title(f"Flood Polygons - Jamaica (Cumulative)\n{blob_path.split('/')[-1]}",
fontsize=12, fontweight='bold')
ax.set_xlabel('Longitude')
ax.set_ylabel('Latitude')
plt.tight_layout()
plt.show()flood_exposure.pyThe flood polygon outputs from Script 04 feed into an interactive marimo dashboard (flood_exposure.py) that provides a self-service interface for exploring flood exposure.
uv run marimo run flood_exposure.pyThe dashboard consumes the polygon shapefiles from blob and performs its own exposure calculation:
exactextract zonal statistics per admin divisionScript 04 (generate polygons)
↓ uploads to blob
ds-flood-gfm/processed/polygon/{ISO3}_*.shp.zip
↓ marimo app loads
flood_exposure.py (interactive analysis)
↓ exports to blob
ds-flood-gfm/processed/exposed_population/{ISO3}_*.csvThe exported CSVs contain per-admin-division exposure estimates (adm3_name, adm3_src, pop_exposed) and are named with the observation dates, flood mode, and buffer distance — for example: JAM_20251103_20251104_20251105_cumulative_b50.csv.
Here we reproduce the marimo dashboard’s choropleth for Jamaica, Haiti, and Cuba using the exported CSVs from blob. This uses the exposure_choropleth helper defined in Appendix C.
import io
import plotly.express as px
from fsspec.implementations.http import HTTPFileSystem
FIELDMAPS_BASE = "https://data.fieldmaps.io/edge-matched/humanitarian/intl"
filesystem = HTTPFileSystem()
def load_exposure_csv(blob_path):
data = stratus.load_blob_data(blob_path, container_name='projects', stage='dev')
return pd.read_csv(io.BytesIO(data))
def load_admin_boundaries(iso3, adm_level):
url = f"{FIELDMAPS_BASE}/adm{adm_level}_polygons.parquet"
return gpd.read_parquet(url, filesystem=filesystem,
filters=[("iso_3", "=", iso3)])
def exposure_choropleth(df_exposure, gdf_adm, adm_level, title, pop_col='pop_exposed'):
name_col = f'adm{adm_level}_name'
src_col = f'adm{adm_level}_src'
merge_col = src_col if src_col in df_exposure.columns and src_col in gdf_adm.columns else name_col
gdf_merged = gdf_adm.merge(df_exposure, on=merge_col, how='left')
if f'{name_col}_x' in gdf_merged.columns:
gdf_merged[name_col] = gdf_merged[f'{name_col}_x']
gdf_merged[pop_col] = gdf_merged[pop_col].fillna(0)
gdf_plot = gdf_merged.copy()
gdf_plot.geometry = gdf_plot.geometry.simplify(tolerance=0.001)
gdf_wgs84 = gdf_plot.to_crs("EPSG:4326") if gdf_plot.crs != "EPSG:4326" else gdf_plot
bounds = gdf_wgs84.total_bounds
max_color = gdf_wgs84[pop_col].quantile(0.99)
total = int(gdf_wgs84[pop_col].sum())
n_div = int((gdf_wgs84[pop_col] > 0).sum())
fig = px.choropleth_map(
gdf_wgs84, geojson=gdf_wgs84.geometry, locations=gdf_wgs84.index,
color=pop_col,
color_continuous_scale=[
(0, "white"), (0.001, "white"),
(0.001, "#fee5d9"), (1, "#a50f15"),
],
range_color=[0, max(max_color, 1)],
zoom=6,
center={"lat": (bounds[1] + bounds[3]) / 2,
"lon": (bounds[0] + bounds[2]) / 2},
hover_name=name_col,
hover_data={pop_col: ":,.0f"},
height=500,
)
fig.update_traces(marker_line_color="lightgrey", marker_line_width=0.5)
fig.update_layout(title=f"{title}<br><sup>Total: {total:,} people in {n_div} divisions</sup>")
return figdf_jam = load_exposure_csv(
'ds-flood-gfm/processed/exposed_population/JAM_20251029_20251030_20251102_20251103_cumulative_b50.csv'
)
gdf_jam = load_admin_boundaries('JAM', 3)
fig = exposure_choropleth(df_jam, gdf_jam, 3,
"Jamaica - Hurricane Melissa (Cumulative, 50m buffer)")
fig.show()df_hti = load_exposure_csv(
'ds-flood-gfm/processed/exposed_population/HTI_20251027_20251029_20251030_20251031_cumulative_b50.csv'
)
gdf_hti = load_admin_boundaries('HTI', 2)
fig = exposure_choropleth(df_hti, gdf_hti, 2,
"Haiti - Hurricane Melissa (Cumulative, 50m buffer)")
fig.show()df_cub = load_exposure_csv(
'ds-flood-gfm/processed/exposed_population/CUB_20251104_20251105_20251106_cumulative_b50.csv'
)
gdf_cub = load_admin_boundaries('CUB', 3)
fig = exposure_choropleth(df_cub, gdf_cub, 3,
"Cuba - Hurricane Melissa (Cumulative, 50m buffer)")
fig.show()For reference, the full blob layout:
ds-flood-gfm/
├── raw/
│ ├── codab/{iso3}/ # Admin boundaries (parquet)
│ └── geom/ # Custom geometries (geoparquet)
├── processed/
│ ├── polygon/ # Flood polygon shapefiles ← Script 04 output
│ ├── provenance_raster/ # Provenance COGs ← Script 04 output
│ ├── exposed_population/ # Population CSV exports ← Marimo app output
│ └── cache/{iso3}/ # Cached intermediate data ← Script 02 cache
├── plots/ # Choropleth PNGs ← Scripts 02/03 output
└── jrc/ # JRC reference data
